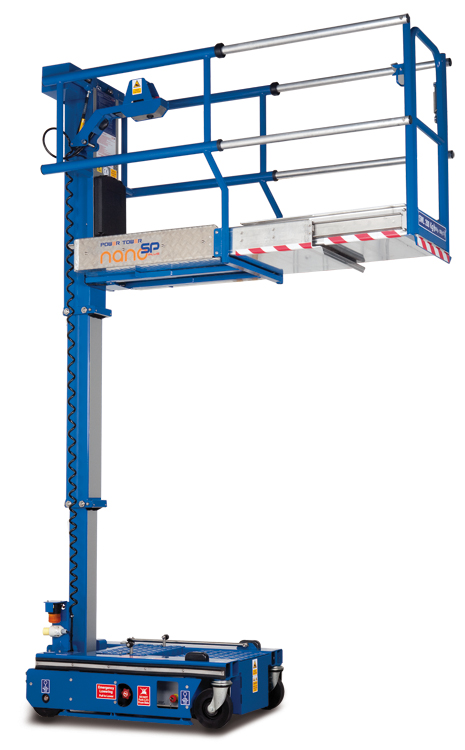

Power Tower Nano SP

Power Tower Nano SP

OPERATING DIMENSIONS
Maximum working height: 4.50m
Maximum platform height: 2.50m
Closed platform height: 0.39m
Outreach with cantilever deck to cage edge: 0.50m

Basket dimensions: 1.00m x 0.73m
Basket dimensions with cantilever: 1.50m x 0.72m
Basket dimensions without cantilever: 1.00m x 0.73m
Working footprint: 1.19m x 0.75m
Safe working load: 200kgs (1 person plus tools)
Maximum manual force: 200 N
Max. gradient for operation: 1.8°
Max. wind force: 12.5m/sec

Basket dimensions: 1.00m x 0.73m
Basket dimensions with cantilever: 1.50m x 0.72m
Basket dimensions without cantilever: 1.00m x 0.73m
Working footprint: 1.19m x 0.75m
Safe working load: 200kgs (1 person plus tools)
Maximum manual force: 200 N
Max. gradient for operation: 1.8°
Max. wind force: 12.5m/sec

Maximum weight inc. payload: 470kg + 200kg = 670kgs
Maximum castor point load: 210kgs (2.10 kN)
Drive Speed Max: 4.6 KpH
Drive Speed Slow: 0.7 KpH

CLOSED DIMENSIONSCLOSED DIMENSIONS
Length: 1.20m
Width: 0.75m
Height: 1.59m
Weight: 478kgs
POWER SOURCE/DRIVE
Standard 24v DC Electric Motor
24V DC Motor/Gearbox Drive
BATTERY CHARGER SPECIFICATION
Input Voltage: 90-265V AC
Frequency: 45-65 Hz
Output: 24V DC, 7A
